Environmentally Friendly Engines
Our environmentally friendly engines have been developed to meet the stricter exhaust gas regulations of the future, while retaining the energy-saving economy and low maintenance costs characteristic of a DAIHATSU DIESEL engine. Naturally, they are IMO Tier 2 compliant.

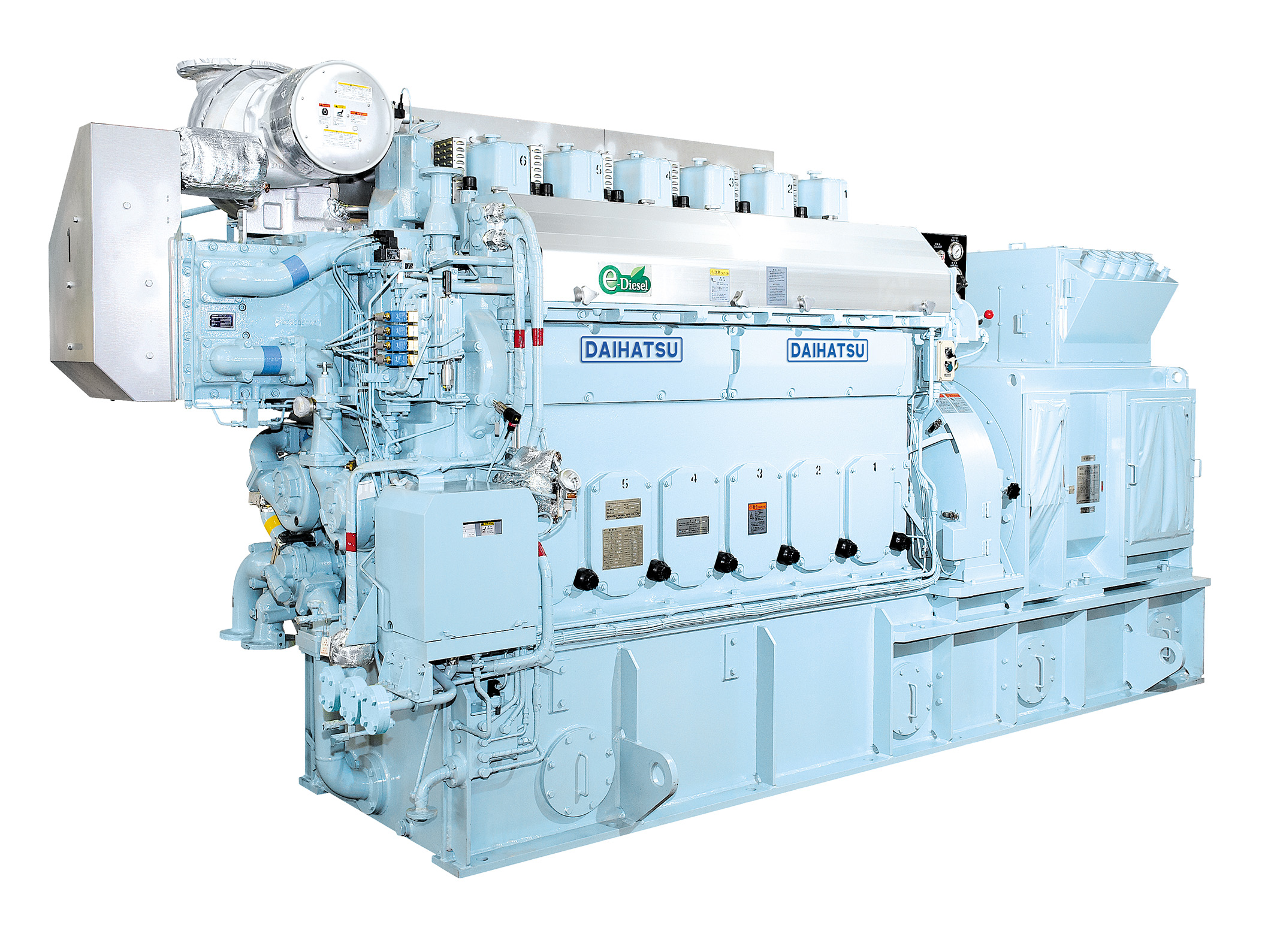

6DE-18 Specifications
| Engine model | Unit |
6DE-18 |
|
|---|---|---|---|
| Cylinder Diameter | mm |
185 |
|
| Stroke | mm |
280 |
|
| No. of Cylinders | 6 | ||
| Engine Revolutions | min-1 | 720/750 | 900 |
| Engine Output | kWm | 375〜700 | 400〜860 |
| Generator Output | kWe | 355〜665 | 380〜815 |
| Overall Length(*1) | mm | 4,850 | |
| Overall Width(*2) | mm | 1,070 | |
| Overall Height(*3) | mm | 2,400 | |
| Piston Overhaul Height(*4) | mm | 1,400 | |
| Generator Set Dry Mass(*5) | kg | 13,000 | |
*1 Varies depending on the generator.
*2 The maximum width of the common baseplate mounting surface.
*3 The height of the exhaust port from the common baseplate mounting surface.
*4 The height from the common baseplate mounting surface.
*5 Varies depending on the generator.
Power Chart
- 6DE-18 Generator Output：355～665(720/750), 380～815kWe(900)
- 6DE-20 Generator Output：770〜1035kWe(900)
- 6DE-23 Generator Output：760〜1215kWe(750), 950〜1440kWe(900)
- 6DE-28 Generator Output：1850〜2065kWe(720/750)
- 8DK-28e Generator Output：1915〜2800kWe(720/750)
- 6DE-33 Generator Output：2605〜3470kWe(720/750)
- 8DE-33 Generator Output：3470〜4630kWe(720/750)
- 6DL-16Ae Generator Output：235〜480kWe(1200)
- 6DE-18 Generator Output：355～665(720/750), 380～815kWe(900)
- 6DE-20 Generator Output：770〜1035kWe(900)
- 6DE-23 Generator Output：760〜1215kWe(750), 950〜1440kWe(900)
- 6DE-28 Generator Output：1850〜2065kWe(720/750)
- 8DK-28e Generator Output：1915〜2800kWe(720/750)
- 6DE-33 Generator Output：2605〜3470kWe(720/750)
- 8DE-33 Generator Output：3470〜4630kWe(720/750)
- 6DL-16Ae Generator Output：235〜480kWe(1200)
